Description
| Turning diameter (Max.) | Ø330mm |
| Swing over cross slide | Ø198mm |
| Distance between centers | 1000mm |
| Center heigh | 166mm |
| Width of bed | 187mm |
| Spindle nose | D1-4 |
| Spindle bore | Ø38mm |
| Taper of spindle bore | MT5 |

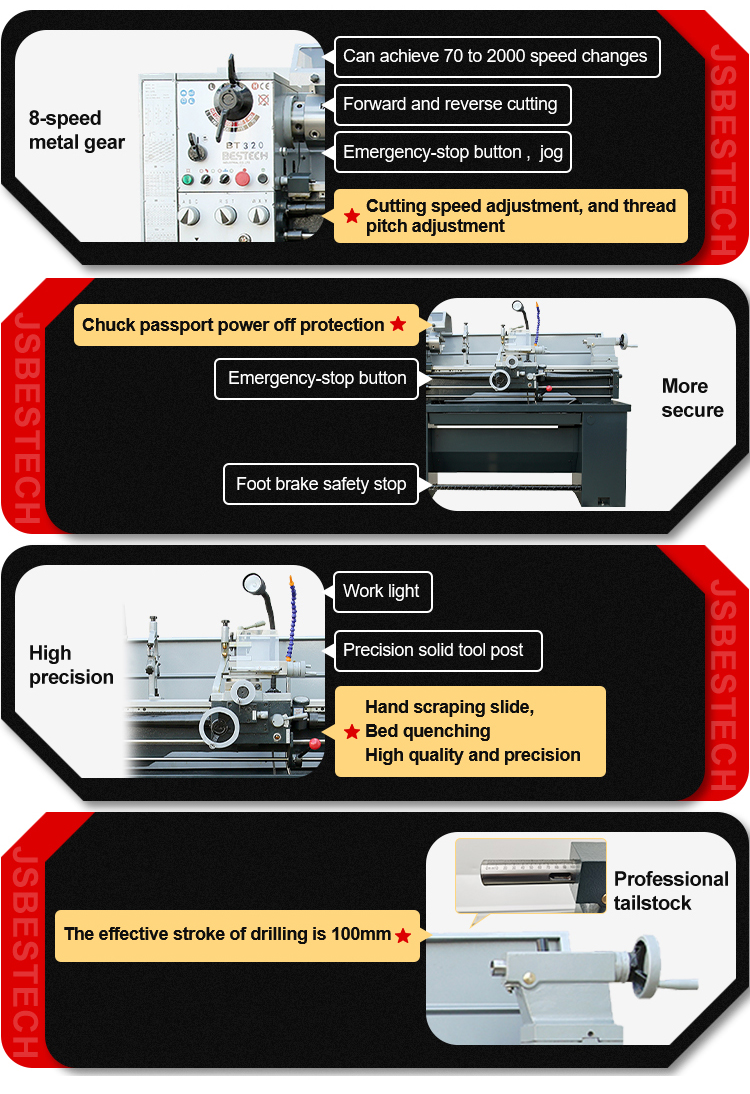

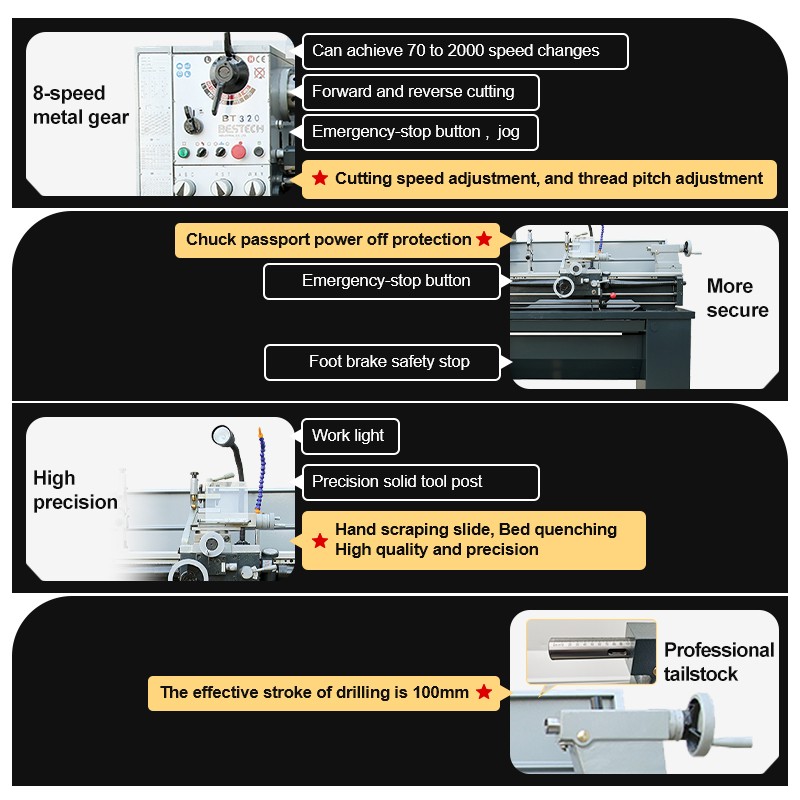

| Spindle speed (8 steps) | 70~2000rpm |
| Top slide travel | 95mm |
| Cross slide travel | 170mm |
| Max. section of tools | 16x16mm |
| Range of metric threads (44 kinds) | 0.1~7mm |
| Range of inch threads (42 kinds) | 4~112 T.P.I |
| Lead screw diameter | Ø22mm |
| Lead screw thread | 3mm or 8T.P.I |
| Tailstock quill diameter | Ø32mm |
| Tailstock quill travel | 100mm |
| Taper of tailstock quill | MT3 |
| Motor power | 1.5kw |
| Voltage | 380V~440V (3PH) |

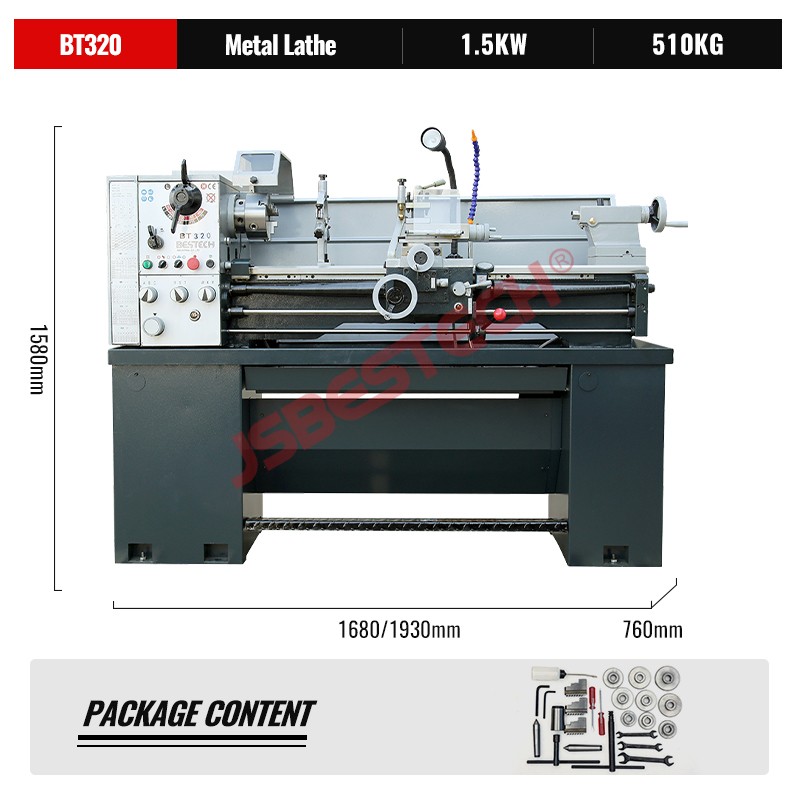

| Packing size | (1680/1930)x760x1580mm |
