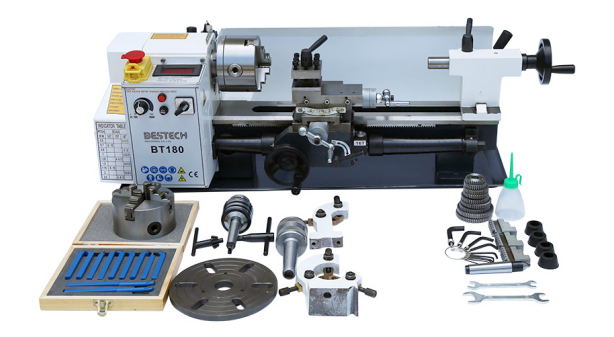

BT180 for metal working mini bench torno lathe machine

  • Distance between centers:300/350mm(optional)
  • Max. Swing over cross slide:110mm
  • Width of bed:83mm
  • Range of metric threads:0.5-2.5mm
    • mini torno metal , bench lathe machine mini , lathe machine bestech
    Inquiry Send Email

    Description

    Turning diameter (Max.) Ø180mm
    Swing over cross slide Ø110mm
    Distance between centers 300mm/350mm (Optional)
    Width of bed 83mm
    Spindle bore Ø20mm
    Spindle taper MT3
    Variable speed 50~2500rpm
    Top slide travel 55mm
    Cross slide travel 75mm
    Max. section of tools 10x10mm
    Range of metric threads 0.5~2.5mm
    Range of inch threads 12~52 T.P.l
    Tailstock quill diameter Ø22mm
    Tailstock quill travel 50mm
    Taper of tailstock quill MT2
    Motor power 400w/550w
    Voltage 110V~240V(1PH)
    Packing size 810x310x320mm
